Refurbishing green spaces and building new equipment in Plaza de San Germán
Refurbishing green spaces and building new equipment in Plaza de San Germán
This overhaul of Plaza de San Germán and its surroundings will involve various refurbishment works, including improving green spaces, increasing children’s playground equipment, creating spaces for the elderly, and building a dog agility circuit.
Client:
Tetuán District, City of Madrid
Location:
Madrid
Period:
2020
Type of service:
Street furniture and playgrounds
Budget:
€244,263

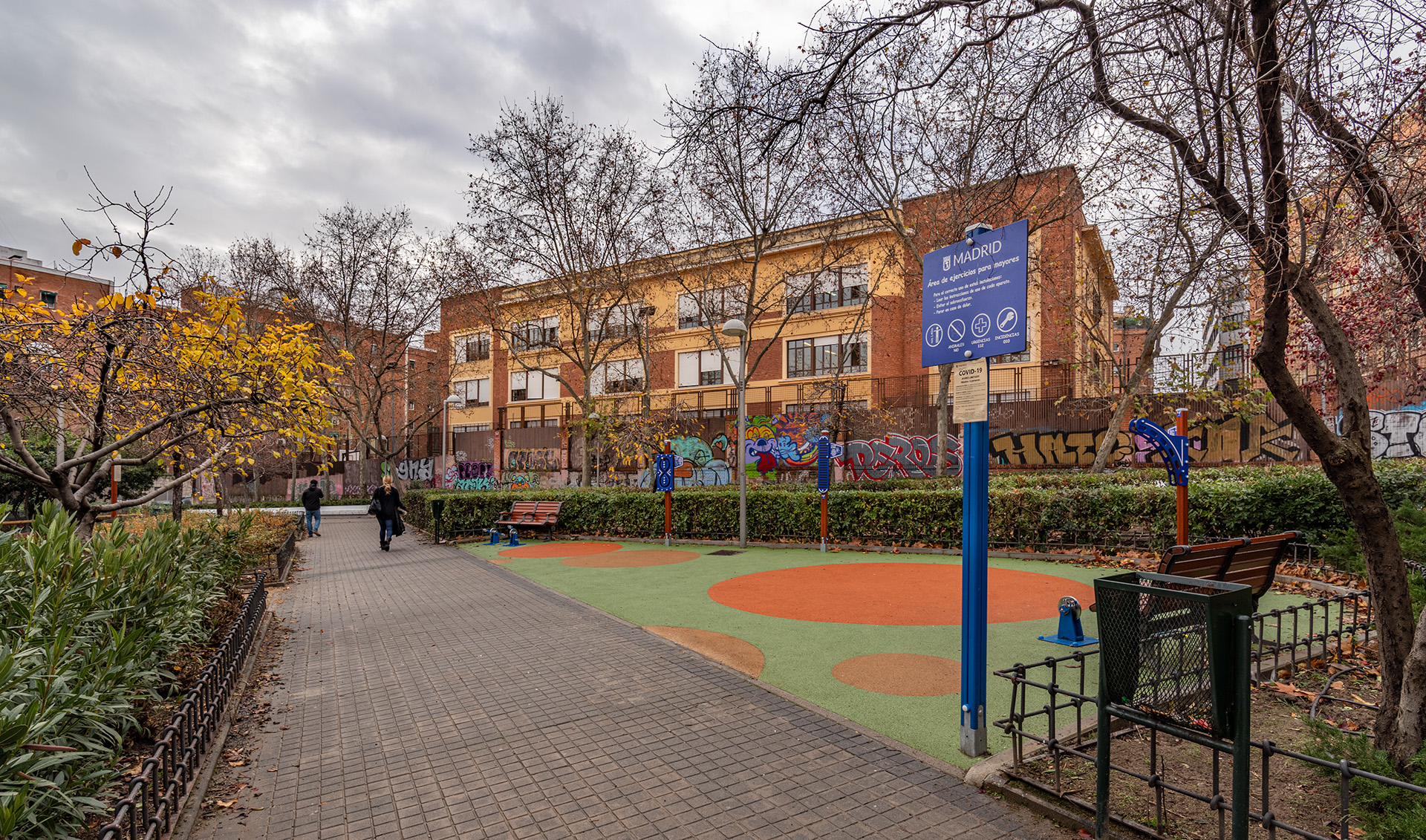

Located at the crossroads between Calle Infanta Mercedes and Calle Huesca in Madrid’s Tetuán District, Plaza de San Germán will undergo refurbishment and building works. The project includes repaving paths, improving the children’s playground, and installing new street furniture designed for various purposes. The main aspects of the works are:
• Demolishing paving and removing existing street furniture.
• Adapting pedestrian paths and the entry of vehicles to the square to current accessibility standards.
• Extending green spaces.
• Refurbishing seating areas with anti-graffiti surface treatment
• Demolishing paving and removing existing street furniture.
• Adapting pedestrian paths and the entry of vehicles to the square to current accessibility standards.
• Extending green spaces.
• Refurbishing seating areas with anti-graffiti surface treatment
• Building an area for the elderly.
• Building a dog agility circuit.
• Improving paving and renovating equipment in the children’s playground.
• Installing outdoor fitness equipment.
• Installing new street furniture: benches, fences and handrails.
This project is part of the Framework Agreement for refurbishment, repair, and conservation works for all the public buildings and spaces under the authority of the Tetuán District of the City of Madrid, Plot 4: Public Spaces.
• Building a dog agility circuit.
• Improving paving and renovating equipment in the children’s playground.
• Installing outdoor fitness equipment.
• Installing new street furniture: benches, fences and handrails.
This project is part of the Framework Agreement for refurbishment, repair, and conservation works for all the public buildings and spaces under the authority of the Tetuán District of the City of Madrid, Plot 4: Public Spaces.
DETAILS
Technical data
Total paved area Total landscaped area
· 1250 m² of repaved sidewalk.
· 186 m² of poured flexible rubber floor.
· 35 m² of cobbled paving.
· 217 ml of precast curbs.
· 1250 m² of repaved sidewalk.
· 186 m² of poured flexible rubber floor.
· 35 m² of cobbled paving.
· 217 ml of precast curbs.
Total surface area of the landscaped areas
· 34 m² of new landscaped area.
Street furniture
· Outdoor fitness equipment area: two sets of pedal benches, a figure of eight post, a finger ladder post and an arm ladder post.
· Three wooden benches.
· 59 ml knot fence.
· 16 ml double handrail.
· Outdoor fitness equipment area: two sets of pedal benches, a figure of eight post, a finger ladder post and an arm ladder post.
· Three wooden benches.
· 59 ml knot fence.
· 16 ml double handrail.
Children’s playground and dog agility equipment
· One two-seat swing set.
· One tower with slide.
· One cattle grid.
· One wheel for the dog agility circuit.
· One dog jumping gate.
· 55 ml mesh fence.
· One two-seat swing set.
· One tower with slide.
· One cattle grid.
· One wheel for the dog agility circuit.
· One dog jumping gate.
· 55 ml mesh fence.
