Multi-family building with housing units and commercial premises in Girona
Multi-family building with housing units and commercial premises in Girona
Construction of a six-storey building containing 32 flats with three and four bedrooms, commercial premises and car parking next to La Devesa Park.
Client:
Cimexco, S.A.
Location:
Girona
Period:
February 2020 to November 2021
Type of work:
Residential
Budget:
€7,665,000.00 (excluding VAT)
Architect:
BR29 Arquitectos

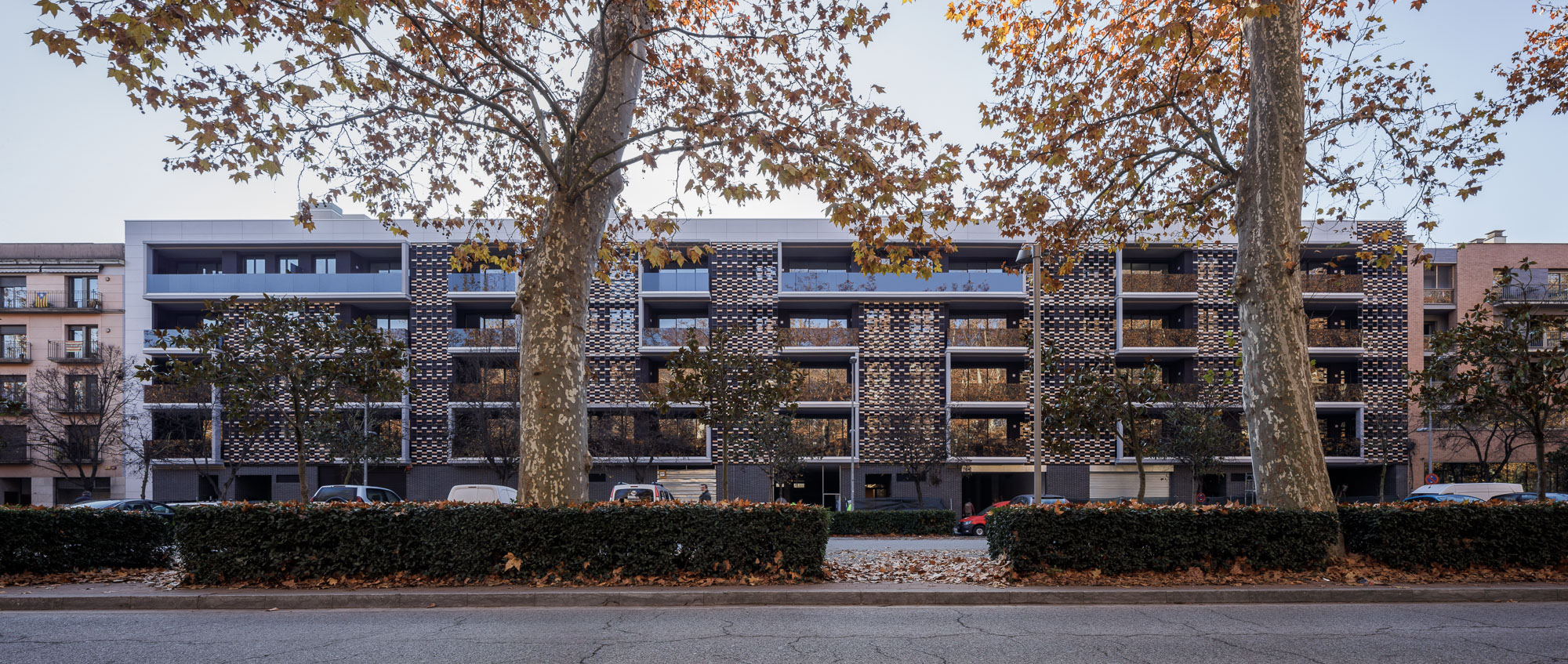

Located at 2-3 Carrer de Riu Güell in the city of Girona, the new building enjoys privileged views over La Devesa Park.
The project occupies a total built area of 10,322.90 m², upon which 32 homes, three commercial premises and
an underground car park with storage rooms have been built. There is also a communal area with a swimming pool and solarium with artificial grass.
The building has been constructed between dividing walls and is made up of six storeys above ground (ground floor + 5).
DETAILS
Technical data
Structural elements: Reinforced concrete foundations and structure.

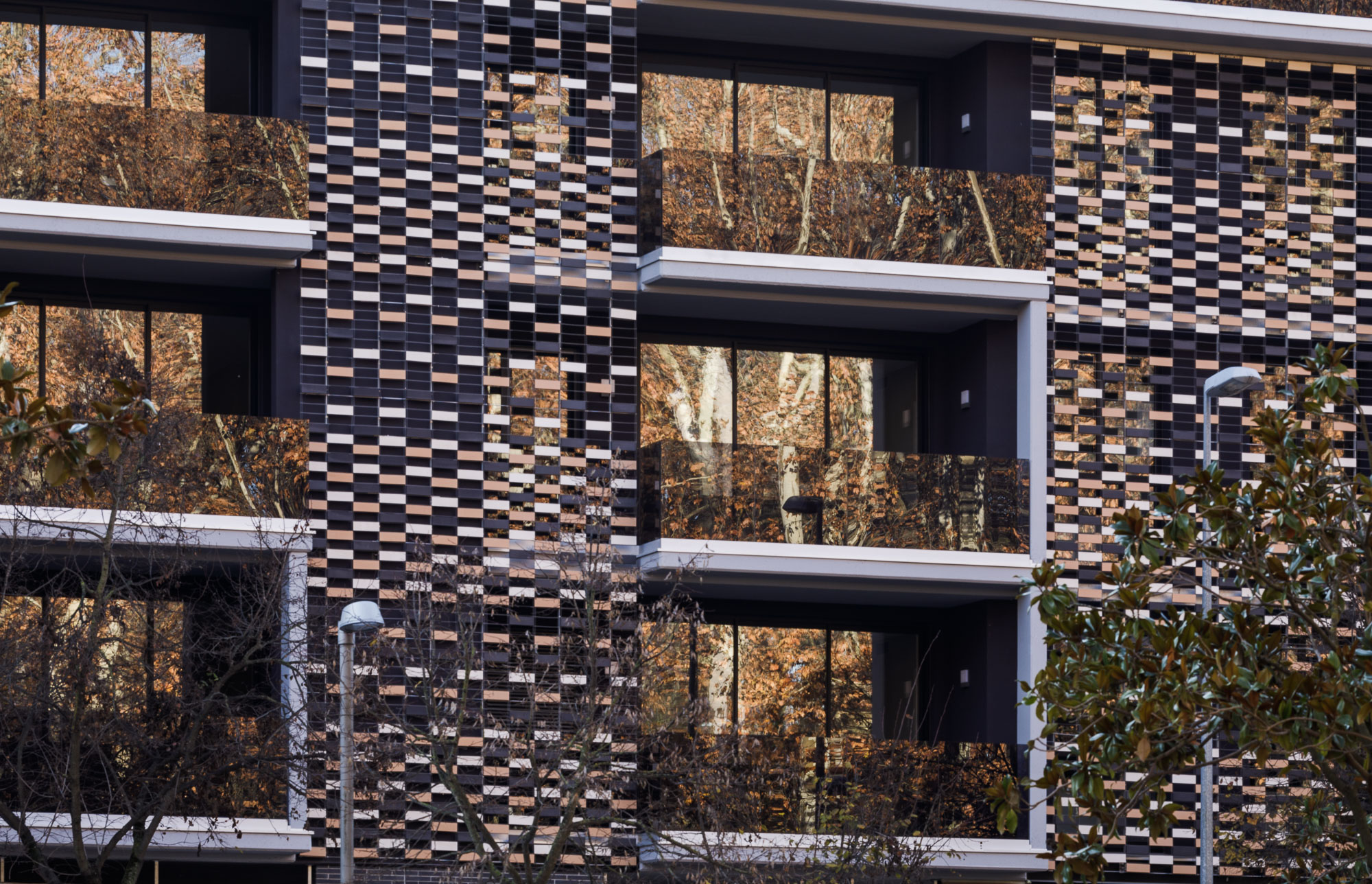

Façade: ETIS system, main sheet of perforated brick, exterior insulation with rigid panel and single-layer mortar cladding.
Partitioning: Partition with ceramic brick wall, panelling with laminated plasterboard half partitions, thermal and acoustic insulation with rock wool inside the panelling structure.
Lighting in common areas: Combined motion and photocell detectors.
Exterior carpentry: Lacquered aluminium with thermal break and double glazing with high energy efficiency inner chamber.
Vestibules: Access by proximity detector card and automatic opening.
